Demag 800 - 200 System
| Details |
| Manufacturer: | Demag |
| Type of machine: | System 800 - 200 |
| Year: | 1996 |
| Delivery time: | Now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 kN |
| Size of mould platens (h x v): | 580 mm x 590 mm |
| Distance between tie bars (h x v): | 400 mm x 400 mm |
| Mould opening stroke: | 450 mm |
| Mould height min./ max: | 250 / .... mm |
| Max daylight: | 700 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 41,2 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| L / D | |
| Injection pressure: | 1900 bar |
| Stroke volume: | 106 ccm |
| Shot weight, PS: | 94 g |
| Injection rate: | ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | kW |
| Installed heating capacity: | 7,5 kW |
| Dry cycle number: | |
| Reservoir capacity: | 250 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 3900 x 1400 x 1900 mm | |
| weight: | 3700 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - Robot interface Euromap 12 - |
|

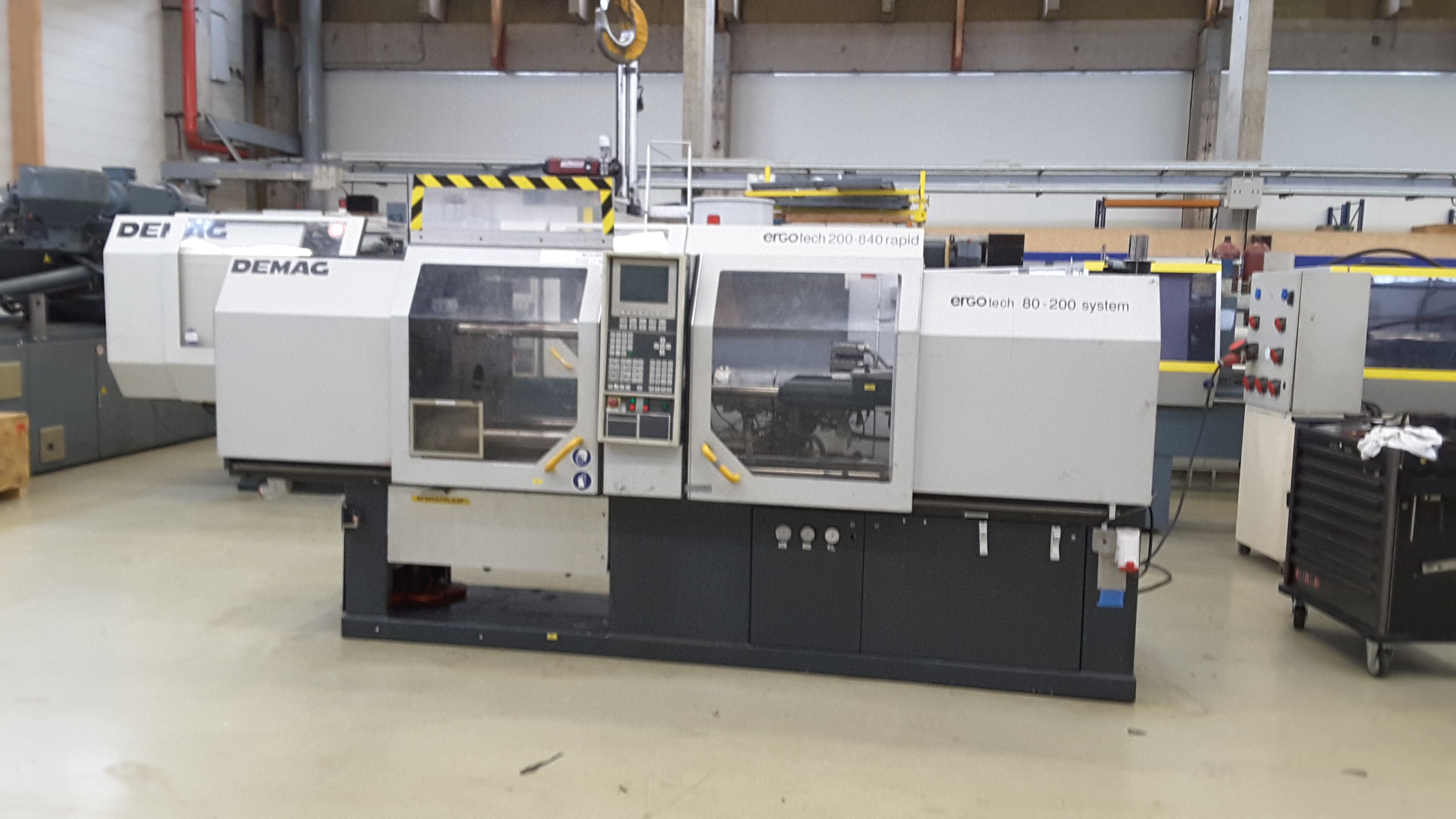

| Picture |
|---|
